Soft recovery shackle

A soft shackle is a synthetic rope loop that replaces a steel D-ring shackle at the connection point in a recovery. It is made from HMPE fiber, weighs a few ounces instead of a few pounds, and if it ever fails it drops to the ground instead of flying through a windshield.

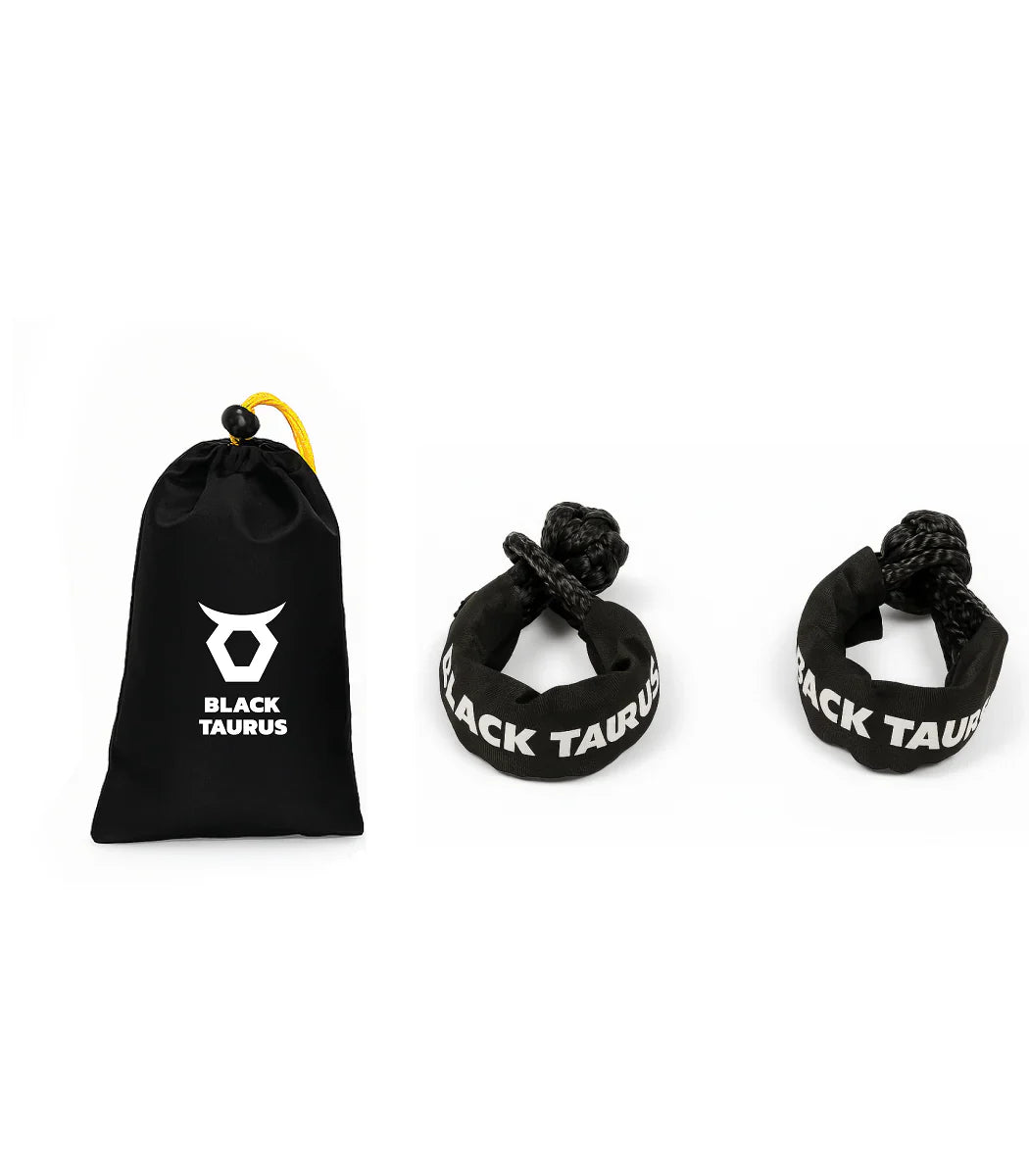

Black Taurus soft shackles are spliced from HMPE fiber, fitted with an abrasion sleeve at the knot, and rated from 30,000 lb up to 68,400 lb breaking strength in 3/8" and 9/16" diameters. Below you will find the size chart, the full specifications, a straight comparison against steel, and the safety ratings explained properly.

What Is a Soft Shackle and How Does It Work

A soft shackle is a closed loop of high-strength synthetic rope with a diamond knot at one end and a spliced eye at the other. You pass the loop through both connection points, pull the knot through the eye, and the shackle is closed. No pin, no threads, no tools.

The load path is what makes it work. Under tension the knot pulls tighter into the eye rather than looser, so the harder the pull the more secure the closure becomes. HMPE fiber is stronger than steel wire of the same weight, which is how a loop you can hold in two fingers carries tens of thousands of pounds.

Two properties matter more than the capacity number. The shackle has almost no mass, so a failure has almost no energy behind it. And the loop is flexible, so it threads through recovery points, hitch receivers and pulley blocks that a rigid steel bow will not fit through. For the full mechanics, read our guide on how to use a soft shackle.

HMPE and Dyneema: What Soft Shackle Material Actually Is

HMPE stands for high modulus polyethylene. You will also see the same material called UHMWPE, and sold under fiber trade names such as Dyneema and Spectra. If you have been searching for a Dyneema soft shackle, what you are looking for is a shackle spliced from this class of fiber. Those trade names belong to the fiber manufacturers, not to any shackle brand, and we do not market our shackles under them. Ours are described as HMPE because that is the material class, stated plainly.

What actually separates one synthetic soft shackle from another is fiber grade, splice quality and the abrasion sleeve over the knot, not the trade name printed on a label.

The properties that matter for recovery: HMPE does not absorb water, does not rust or seize, resists UV and abrasion, and floats. It also stretches very little, which is exactly what you want in a connector. Stretch belongs in the rope between the vehicles, not at the attachment point.

Soft Shackle Size Chart: Matching Capacity to Your Vehicle

How to Size a Recovery Soft Shackle: The 2.5x Rule

Choose a shackle with a breaking strength of at least two and a half to three times the loaded weight of the heavier of the two vehicles. That multiplier is not padding. It is the margin that keeps the connector out of the danger zone when a recovery goes badly: a bogged tire that suddenly releases, a snatch that loads faster than expected, or an angle that concentrates force on one point.

Size to the heavier vehicle, not the lighter one. If a full-size truck is pulling a UTV, the forces in the system come from the truck. A shackle sized for the UTV is the weak link in that setup, and the weak link is where a recovery fails.

Replacing 3/4" Steel Shackles with Soft Shackles

If you are searching for a 3/4 soft shackle, you are almost certainly looking to replace the 3/4" steel bow shackle that came with your recovery kit. The diameters do not translate directly, because steel and synthetic carry load differently. A 3/8" HMPE soft shackle carries a breaking strength in the same range as a typical 3/4" steel bow, at a fraction of the weight.

Compare by rated capacity, not by diameter. Find the breaking strength stamped or published for your current steel shackle, then choose the soft shackle that meets or exceeds it. Keep the steel in the kit for winch drum connections and fixed points where a rigid bow is genuinely better, and swap to synthetic everywhere the connection is vehicle to vehicle. Our steel D-ring shackles cover those cases.

Heavy Duty Soft Shackles: Capacity Options

Our range covers two capacity classes and both are sold as pairs, because recoveries need two connection points far more often than one.

30,000 lb class, 3/8" diameter. The general purpose shackle for the majority of trail recovery. Correct for ATVs, UTVs, mid-size rigs and stock half-ton trucks, and light enough that keeping a spare pair in the door pocket costs you nothing.

68,400 lb class, 9/16" diameter. The heavy duty soft shackle in the range, for three-quarter tons, heavily modified rigs, winching and rigging work, and anyone who wants a margin that does not need thinking about. Thicker fiber also means more abrasion life at the knot, which is where wear concentrates.

Standard and Long Soft Shackles

A standard soft shackle is sized to close around a recovery point and a rope eye. A long soft shackle adds loop length for cases where the connection has to reach further: doubled recovery points, a thick bumper section, an aftermarket hitch shackle mount, or a rigging setup where the shackle passes around a wider anchor. Longer is not stronger. Use the shortest shackle that closes properly around the connection, because excess loop is slack that can catch or twist under load.

Full Specifications

Every figure above is a minimum breaking strength, not a working load limit. The two are explained in full further down this page.

Soft Shackle vs Steel D-Ring Shackle

The honest summary: a soft shackle is not dramatically stronger than a comparable steel shackle. It is dramatically safer when something goes wrong, and far more convenient the rest of the time. That is the whole argument, and it is enough. Both belong in a complete kit, which is how we build our off-road recovery kits.

Understanding WLL vs MBS Ratings

Recovery gear is sold using two different numbers and they are not interchangeable. Confusing them is the most common way people end up under-equipped.

Minimum breaking strength (MBS) is the load at which the item is expected to fail in a controlled test. Every capacity figure on this page is an MBS figure.

Working load limit (WLL) is the load rated for routine service. It is a fraction of MBS, arrived at by applying a design factor, and in synthetic recovery hardware that factor is commonly somewhere between 3:1 and 5:1.

The practical rule: never plan a recovery around the breaking strength number. Breaking strength is the ceiling, not the target. Sizing to two and a half or three times your vehicle weight keeps the actual working loads far below the published figure, which is exactly where they belong. When you compare our numbers against another brand, check which of the two they are publishing before you conclude anything.

How to Use a Soft Shackle Safely

Five steps, in order:

1. Inspect the shackle. Check the knot, the eye and the sleeve before it goes anywhere near load.
2. Pass the loop through both connection points, using rated recovery points only.
3. Pull the diamond knot through the eye and seat it fully. A partly seated knot is the single most common setup error.
4. Check that the shackle is not bearing on a sharp edge, a hot component or a threaded bolt end.
5. Clear the danger zone on both sides, then load smoothly.

That is the summary. For positioning, angles, danger zones and the mistakes that actually break gear, read the complete shackle recovery guide.

The Soft Shackle Knot and How to Open It

The closure is a diamond knot, also called a button knot. It is tied once during manufacture and you never untie it. Your only job is to pass it through the spliced eye to close the shackle and pull it back out to open it.

Opening one after a hard pull catches people out, because the knot seats deeper under load. Do not pull on the knot itself. Push the eye back down the standing part of the loop to create slack, then work the knot back through. If it is stubborn, flex the loop against itself to loosen the eye first. Never use a screwdriver, a knife or pliers on the fiber.

Common Mistakes to Avoid

• Attaching to a tow ball, a bumper cutout or a tie down eye instead of a rated recovery point.
• Running the loop over a sharp edge or a bolt thread with no protection.
• Leaving the knot partly through the eye rather than fully seated.
• Letting the shackle rest against a hot brake rotor or exhaust component.
• Sizing to the stuck vehicle instead of the heavier of the two.

Soft Shackles for Towing, Winching and Recovery Rigging

Vehicle to vehicle recovery. The primary job. A soft shackle connects a kinetic recovery rope to the recovery points at both ends. This is where synthetic beats steel most clearly, because it is the connection most likely to be under shock load with people nearby.

Soft shackles for towing. Fine for connecting a tow strap to rated recovery points on a trail or in a yard. Not a substitute for a rated tow hitch and safety chains on a public road, where the legal requirements are a separate matter from the strength of the connector.

Winch rigging and pulley work. Soft shackles pair naturally with a snatch ring or recovery pulley, and they are the reason low friction rings work at all. Keep the fiber off the winch drum and off the fairlead, where repeated abrasion under load is the one place a soft shackle genuinely wears faster than steel.

Tree savers and anchor points. Use a soft shackle to join a tree protector strap to your line. Never wrap a soft shackle directly around bark or rock, because both will abrade it. See the rest of our off-road recovery gear for the strap and pulley side of these setups.

Inspection, Cleaning and Storage

Inspect before every trip and again after any hard recovery. Look at three places: the diamond knot, the spliced eye and the sleeve. Retire the shackle if you find cut or pulled fibers, a knot that has deformed, a splice that has started to migrate, or glazing and stiffness that indicates heat damage.

Rinse in clean fresh water after mud, sand or salt, because grit trapped inside the braid cuts fibers from the inside where you cannot see it. Air dry fully before storage. No solvents, no bleach, no pressure washer.

Store dry and out of direct sunlight. UV is the main thing that ages HMPE in storage, and a shackle that lives loose in an open truck bed ages far faster than one kept in a bag. Never repair a soft shackle. There is no field repair for a spliced synthetic connector, and a shackle that looks questionable is a shackle you retire.

How We Build Our Soft Shackles

Every Black Taurus soft shackle is spliced from HMPE fiber and fitted with a protective sleeve at the knot, which is where abrasion concentrates in real use. The construction is deliberately conventional: a diamond knot closure and a spliced eye, the pattern that has been proven across marine rigging and vehicle recovery for years. We are not trying to reinvent the connector.
